SKG Automation Test Tweezers and SKG Automation Test Fixtures are purpose designed to be the best available commercial product for measurement of the most important values such as Capacitance, Resistance and Inductance .Versatile and operator friendly, our products are also robust, efficient and precise
GENERAL SPECIFICATION
Chip size008004 to 127mmSquare
Repeatability0.1pF, 1×10-14 Ohm
Test TypeCap, Df, Resistance,Kelvin
Test Contactarray, End, Long Side, X2Y, leaded, Reel, fixture, SLC, C0G, X7R, Y5V, NP0

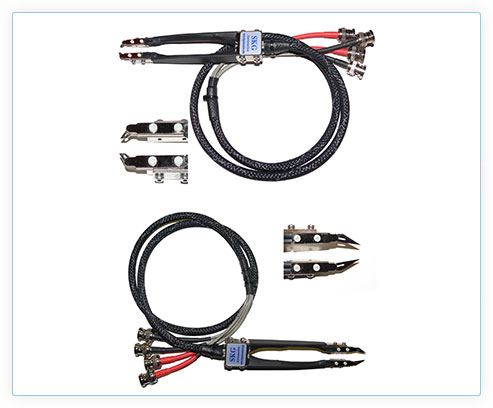

MLCC Tweezers – C/DF
351, 352, 353, 357, 358
Short format, 2 standard electrodes per contact, 0.015″ thick.
Chip Size Range
01005 – 4440
Frequency Range
up to 110 MHz
Primary Application
General purpose testing of MLCC for C/DF
Applicable Instruments
- HP/ Agilent meter: 4278A, 4263, 4268A, 4288A, 4284A, 4285A, 4294A
- Keysight meter: E4980A, E4981A, E4980AL
- Similar HP, Agilent, Keysight Fixtures: 16118A
MLCC Tweezers – IR

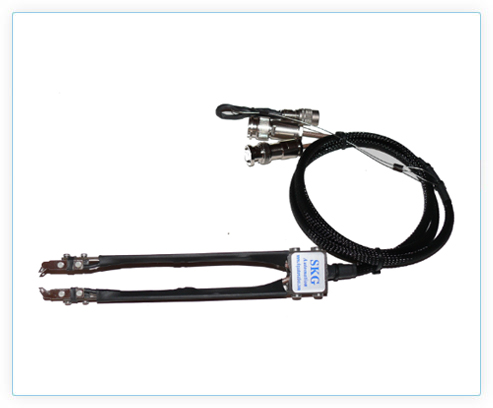

3510, 3511, 3512, 3513, 3514, 3515, 3516, 3517
Chip Size Range
01005 – 4440
Frequency Range
DC
Primary Application
IR testing of MLCC, 1000V max.
Applicable Instruments
- HP/ Agilent meter: 4339A, 4339B, 4329A
- Keysight meter: B2985A, B2987A
- Quadtech/ IET meter: 1864, 1865, 1865+ Similar HP, Agilent, Keysight
- Fixtures: 16118A

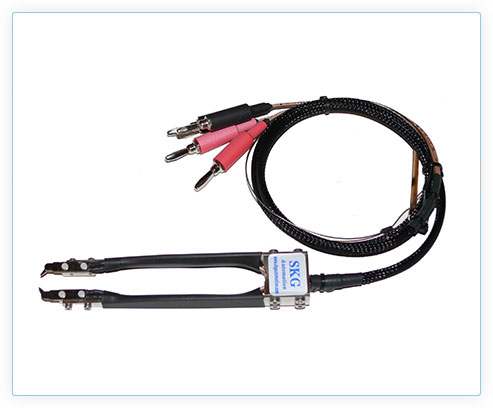

MLCC Tweezers – DCR (Kelvin tweezers)
3527, 3528
Chip Size Range
ALL SLC chip sizes
Frequency Range
1Khz to 1MHz (C/DF) / DC (IR)
Primary Application
C/DF and IR testing of SLC’s
Applicable Instruments
- Keysight meter: 3458A, 34401A, 34460A, 34461A, 34465A, 34470A
- Others: other DCR meters, DC milli-ohm meters and DC micro-ohm meters utilizing banana connectors
SLC Test sets

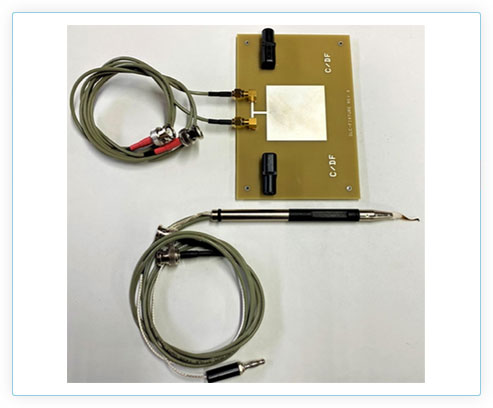

3600A (C/DF) / 3601A (IR)/ 3602A (IR)/ 3603A (IR)/ 3604A (IR)
Chip Size Range
ALL SLC chip sizes
Frequency Range
1Khz to 1MHz (C/DF) / DC (IR)
Primary Application
C/DF and IR testing of SLC’s
Applicable Instruments
- For 3600A (C/DF)
- HP/ Agilent meter: 4278A, 4263, 4268A, 4288A, 4284A, 4285A, 4294A
- Keysight meter: E4980A, E4981A, E4980AL
- For 3601A (IR), HP/ Agilent meter: 4339A, 4339B
- For 3602A (IR), Keysight meter: B2985A, B2987A
- For 3603A (IR), Quadtech/ IET meter: 1864, 1865, 1865+
- For 3604A (IR), Others: other IR meters equipped with banana connectors
Agilent 4339A and 4339B IR Meters Accessories

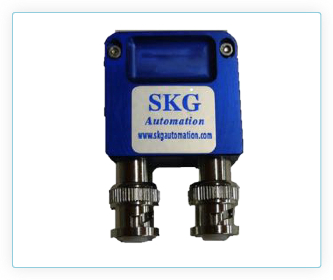

Shunt Connector

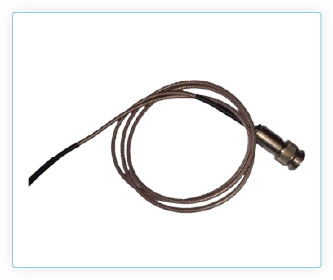

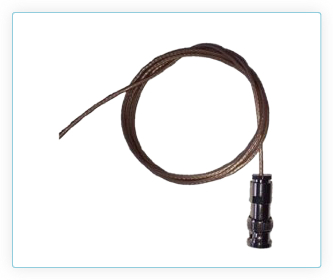

Triax Cable, connector on 1 end, 40” long

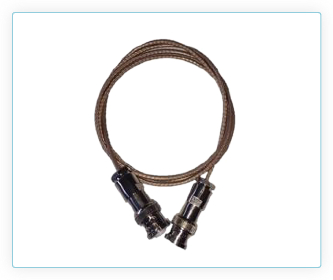

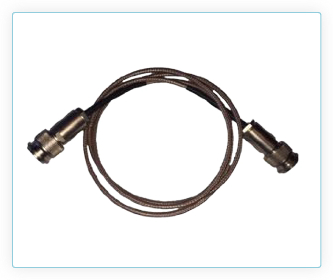

Triax Cable, connector on both ends, 40” long
HV Cable, connector on one end, 40” long
HV Cable, connector on both ends, 40” long

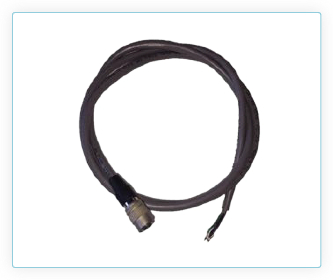

Interlock Cable, connector on one end, 40” long

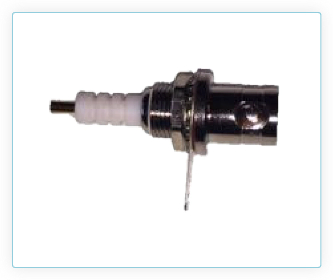

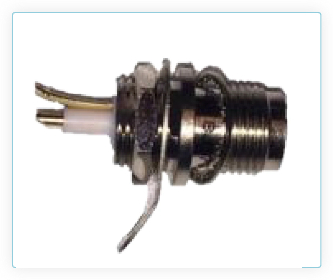

HV connector only
Triax cable connector only

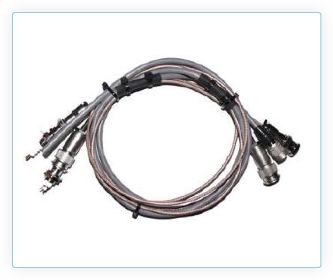

Low noise test leads, set of 4339- 102,104 and 105

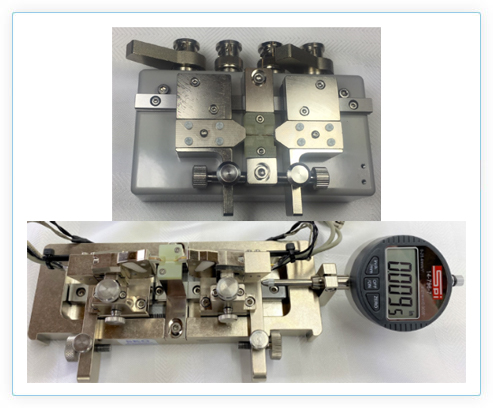

MLCC Fixture – C/DF
Milliohm meter reporting a measured value of 98.06 milliohms on a chip resistor
5720, 5740, 5702, 5747, 5752
Chip Size Range
01005 – 4832
Frequency Range
up to 110 MHz
Primary Application
General purpose testing of MLCC for C/DF
Applicable Instruments
- HP/ Agilent meter: 4278A, 4263, 4268A, 4288A, 4284A, 4285A, 4294A
- Keysight meter: E4980A, E4981A, E4980AL
- Similar HP, Agilent, Keysight Fixtures: 16034E, 16034G, 16047A, 16047E
MLCC Fixture – IR

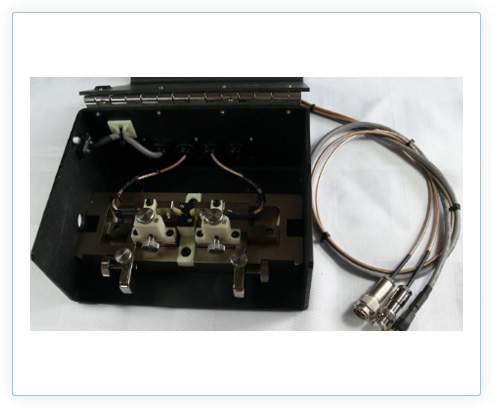

5749, 5750, 5751
Chip Size Range
0201 – 4832
Frequency Range
DC
Primary Application
IR testing of MLCC
Applicable Instruments
- HP/ Agilent meter: 4339A, 4339B, 4329A
- Keysight meter: B2985A, B2987A
- Quadtech/ IET meter: 1865, 1865+
- Similar HP, Agilent, Keysight Fixtures: 16039A
MLCC Fixture – DCR (Kelvin fixture)

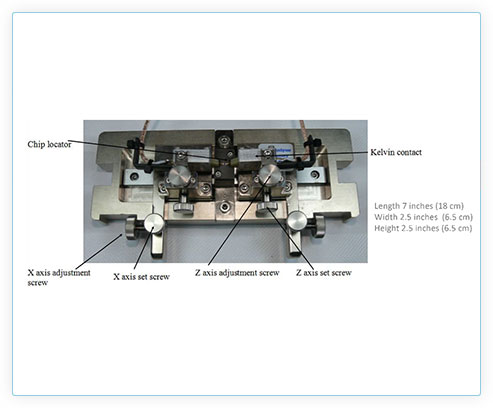

5742
Chip Size Range
0402 – 4832
Frequency Range
DC
Primary Application
DCR testing of chip resistors, chip fuses, chip inductors and other chip devices
Applicable Instruments
- Keysight meter: 3458A, 34401A, 34460A, 34461A, 34465A, 34470A
- Others: other DCR meters, DC milli-ohm meters and DC micro-ohm meters utilizing banana connectors
