VIA/HOLE PUNCHING MACHINE
KMS focuses on future industries such as the development of machines for fuel cells-battery production, automation of laser punching and mechanical equipment for multilayer electronic products in the automotive electronic and consumer electronic manufacturing which need connection through the materials by punching vias/ through holes.
General Specification
Material sizeup to 300mm x 300mm
Speedup to 9.000 holes/sec in production
Holesdown to 0.05mm
Thickness0.02 mm ~ 1.00 mm
Machines
Manual / Automatic Loading Puncher

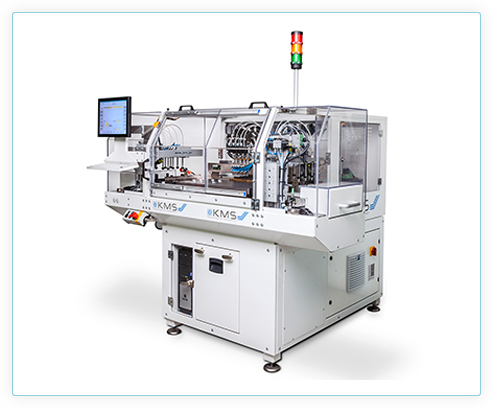

PM30
- Via pin diameter down to 50μm
- Alignment hole punching with single punching units up to 10 mm
- Cavity punching (large sizes) up to 20 hits/ sec or 1200 holes/min
- Punching speed up to 30 hits / sec or up to 1800 holes/ min
- Optional multi pin module

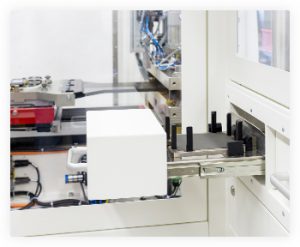

Loading / Unloading

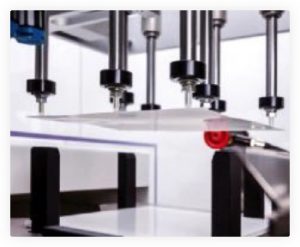

Unmatching Gripping
Punching

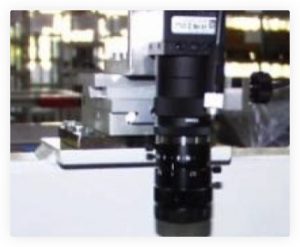

Inspection

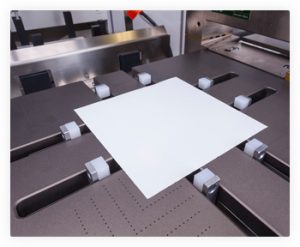

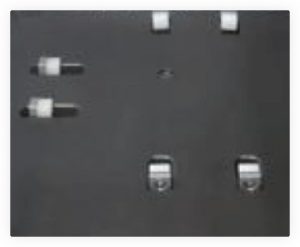

Alignment
Automatic loading Module Puncher

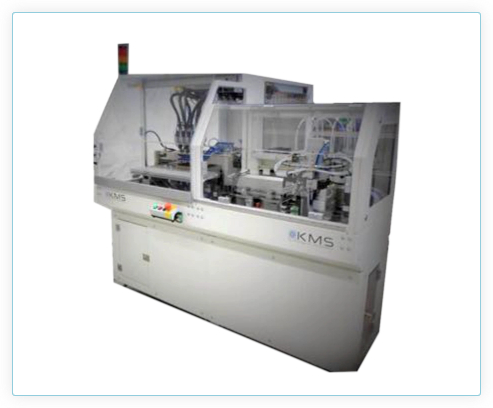

PM35
- Via pin diameter down to 50μm
- Alignment hole punching with single punching units up to 10 mm
- Cavity punching (large sizes) up to 20 hits/ sec or 1200 holes/min
- Punching speed up to 30 hits / sec or up to 1800 holes/ min
- Optional multi pin module
- Optional huge cavity and via punching with up to 9000 holes/sec presently

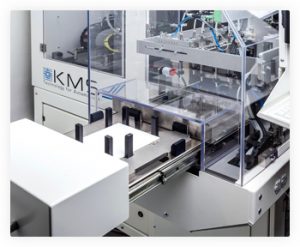

Loading/Unloading
Unmatching Gripping
Punching
Inspection

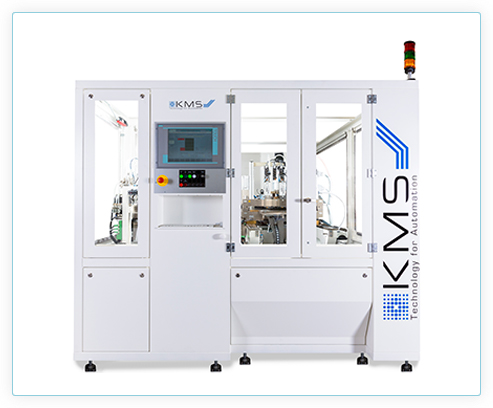

PM40
- Via pin diameter down to 50μm
- Alignment hole punching with single punching units up to 10 mm
- Cavity punching (large sizes) up to 20 hits/ sec or 1200 holes/min
- Punching speed up to 30 hits / sec or up to 1800 holes/ min
- Optional multi pin module
- Optional huge cavity and via punching with up to 9000 holes/sec presently
Loading / Unloading

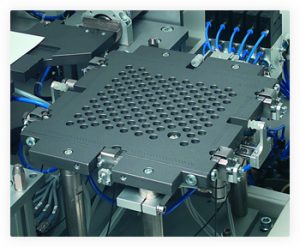

Aligning

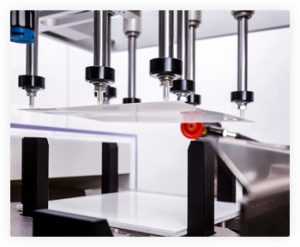

Unmatching Gripping
Punching
Inspection

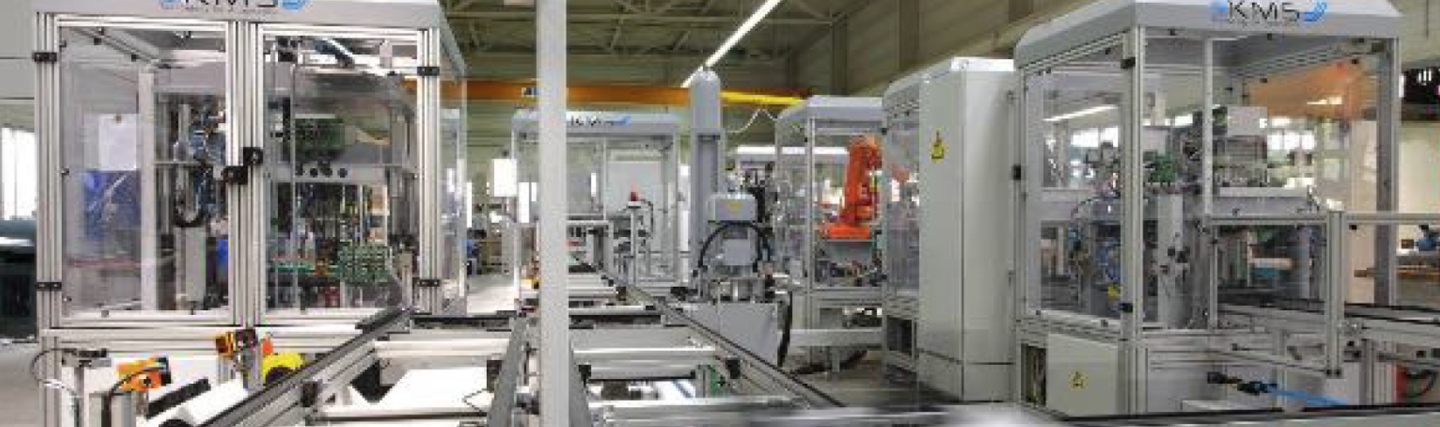

Automatic Punching Lines

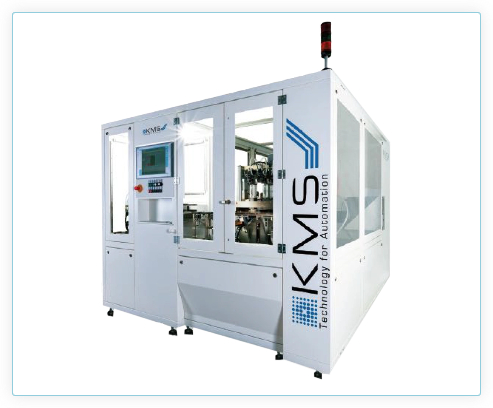

PM40
- Via pin diameter down to 50μm
- Alignment hole punching with single punching units up to 10 mm
- Cavity punching (large sizes) up to 20 hits/ sec or 1200 holes/min
- Punching speed up to 30 hits / sec or up to 1800 holes/ min
- Optional multi pin module
- Optional huge cavity and via punching with up to 9000 holes/sec presently

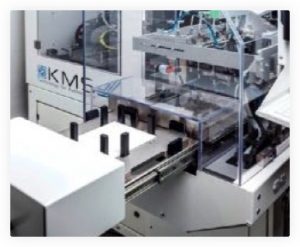

Loading/Unloading

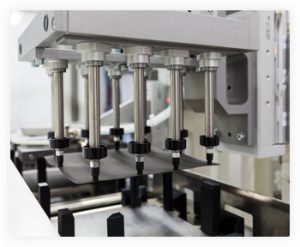

Unmatching Gripping

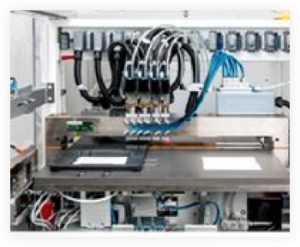

Punching
Inspection

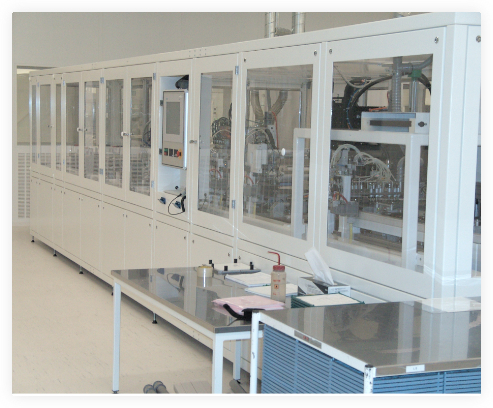

PM50
- Via pin diameter down to 50μm
- Alignment hole punching with single punching units up to 10 mm
- Cavity punching (large sizes) up to 20 hits/ sec or 1200 holes/min
- Punching speed up to 30 hits / sec or up to 1800 holes/ min
- Optional multi pin module
- Optional huge cavity and via punching with up to 9000 holes/sec presently
Loading/Unloading

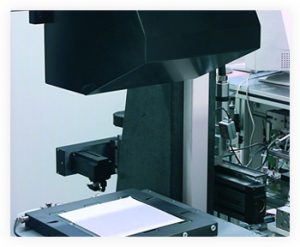

Inspection
Unmatching Gripping
Punching

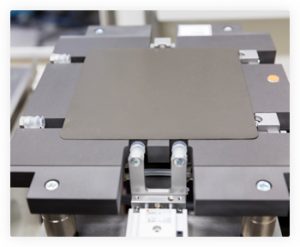

Aligning

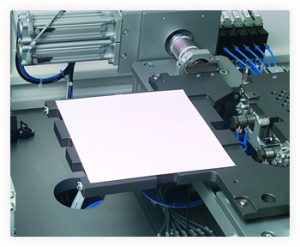

Turning
Punching Technology
