About Nozzle

PASS offers a wide range of nozzle inserts(N1) to optimize your dispensing process. Regardless if you are doing non-contact and contact dispensing, if you are processing small or large dispense volumes that are applied for filled, unfilled, abrasively filled, low, medium or high viscosity media at PASS you will find exactly the right nozzle insert for your individual dispensing process.

Features

  • Dispensing can be carried from longer distance to substrate
  • Variations in the inner channels of the nozzle insert (Step bores, conical bores available)
  • Dispense into cavities or grooves or work around other kinds of barriers
  • Double and single tapered outer counters
  • Possible of dots, lines, or special patterns while reducing fluid stringing or tailing tendencies
  • The long tube design allows for fluids to be easily dispensed into hard to reach areas which conventional dispense tips cannot reach

Specification

  • Inner diameter Ø0,025 – Ø2,500mm, (used in customer products presently)
  • tolerance up to ± 0,001mm
  • High surface finishing
  • Long Ratios, e.g. 6mm Nozzle with 0.10mm channel
  • Application： LED potting, under fills, fine-line bonding, edge sealing, PCB, high density circuit
  • Main customer： leading manufactures from Europe, Asia and US

Short Nozzle

Short Nozzle are the most commonly used NIs. There are a number of different models to choose from.

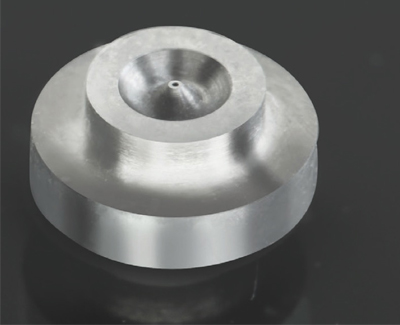

N11

Flat Nozzle Insert with groove for dispensing in Ink wells for example DV-6200, MDS 1000, MDS 3000, TS 9200D used in for Vermes, SSI, Mingseal, Axxon and many more.

Raw Materials: Tungsten Carbide
Corresponding to the applicable firing pin: CTF/TTF4-15, CTL15

Types N11-60 N11-70 N11-75 N11-80 N11-90 N11-100 N11-120 N11-150 N11-200 N11-300 N11-400
Comment Groove type Groove type Groove type Groove type Groove type Groove type Groove type Groove type Groove type Groove type Groove type
Inner Diameter/Outer Diameter/Length 0.06x4x1.75 0.07x4x1.75 0.075x4x1.75 0.08x4x1.75 0.09x4x1.75 0.10x4x1.75 0.12x4x1.75 0.15x4x1.75 0.20x4x1.75 0.30x4x1.75 0.40x4x1.75

N13

Flat Nozzle Insert with groove stepped for dispensing in Ink wells for example DV-6200, MDS 1000, MDS 3000, TS 9200D used in for Vermes, SSI, Mingseal, Axxon and many more. Often used for smallest volume dispensing with a smallest opening of 0.025mm

Raw Materials: Tungsten Carbide
Corresponding to the applicable firing pin: CTF/TTF4-15, CTL15

Types N13-30 N13-40 N13-45 N13-50 N13-60 N13-70 N13- 75 N13- 80
Comment Groove type stepped Groove type stepped Groove type stepped Groove type stepped Groove type stepped Groove type stepped Groove type stepped Groove type stepped
Inner Diameter/Outer Diameter/Length 0.03x4x1.75 0.04x4x1.75 0.045x4x1.75 0.05x4x1.75 0.06x4x1.75 0.07x4x1.75 0.075x4x1.75 0.08x4x1.75
Enquire Now

Use < > to browse through the series of N11, i.e., N13, N14, etc. Nozzles

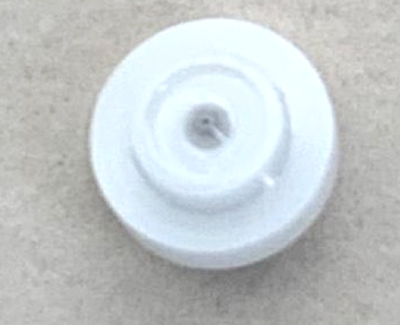

Ceramic Nozzle

Material: SIN,ZrO,AlO,Special request

Ceramic Nozzle Inserts are mainly used forspecial grooves.There are a number of different models to choose from.

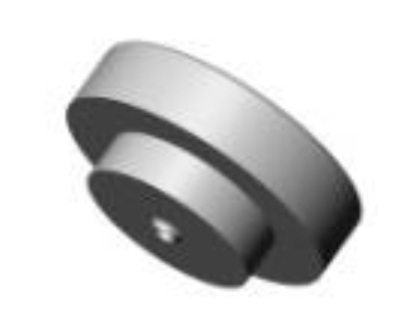

N17

Flat ceramic Nozzle Insert with small tip for different liquid breaking point for dispensing in Ink wells for example DV-6200, MDS 1000, MDS 3000, TS 9200D used in for Vermes, SSI, Mingseal, Axxon and many more.

Raw Materials: Ceramics

Corresponding to the applicable firing pin: CTF/TTF 4-15, CTL15

Types N17-70 N17-100 N17-150 N17-200
Comment Protruding Protruding Protruding Protruding
Inner Diameter/Outer Diameter/Length 0.07x4x1.75 0.10x4x1.75 0.15x4x1.75 0.20x4x1.75

N19

Flat Ceramic Nozzle Insert for dispensing in Ink wells for example DV-6200, MDS 1000, MDS 3000, TS 9200D used in for Vermes, SSI, Mingseal, Axxon and many more.

Raw materials: Ceramic

Types N19-70
Comment Type projection, acute angle, the coating layer
Inner Diameter/Outer Diameter/Length 0.07x4x1.75
Enquire Now

Use < > to browse through the series of N17, i.e.N19, etc. Nozzles

Long Nozzle

Long Nozzle Inserts are mainly used for long distance dispensing and dispensing into cavities or grooves. There are a number of different models to choose from.

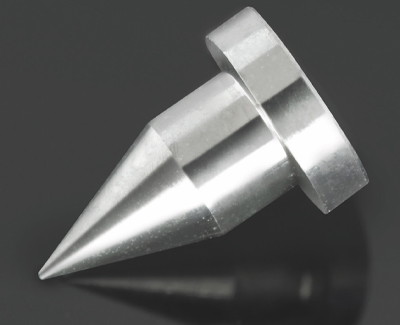

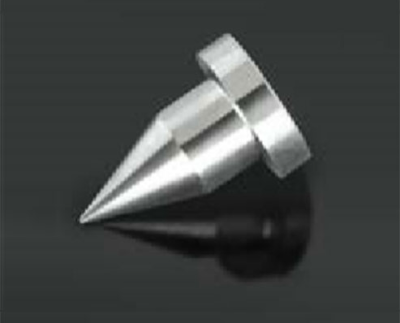

J01

Long Jet Nozzle Insert for dispensing in Ink wells for example DV6200, MDS1000, MDS3000, TS9200D used in for Vermes, SSI, Mingseal, Axxon and many more.

Raw materials: Tungsten Carbide

Corresponding to the applicable firing pin: CTF/TTF 4-15, CTL15

Types J01-100 J01-120 J01-150 J01-200 J01-400
Comment Pointed Pointed Pointed Pointed Pointed
Inner Diameter/Outer Diameter/Length 0.10x4x6 0.12x4x6 0.15x4x6 0.20x4x6 0.40x4x6

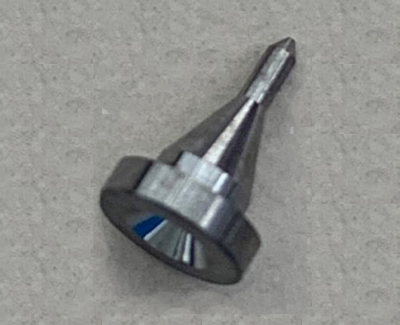

J02

Stepped Long Jet Nozzle Insert for dispensing in Ink wells for example DV6200, MDS1000, MDS3000, TS9200D used in for Vermes, SSI, Mingseal, Axxon and many more.

Raw Materials: Tungsten Carbide
Corresponding to the applicable firing pin: CTF/TTF4-15, CTL15

Types J02-50 J02-70
Comment Pointed type, stepped type Pointed type, stepped type
Inner Diameter/Outer Diameter/Length 0.05x4x6 0.07x4x6

J03

Pointed Long Jet Nozzle Insert for dispensing in Ink wells for example DV6200, MDS1000, MDS3000, TS9200D used in for Vermes, SSI, Mingseal, Axxon and many more.

Raw Materials: Tungsten Carbide
Corresponding to the applicable firing pin: CTF/TTF4-15, CTL15

Types J03-200
Comment Pointed type, jet type
Inner Diameter/Outer Diameter/Length 0.20x4x6.8

J04

Pointed Long Jet Nozzle Insert for dispensing in Ink wells for example DV6200, MDS1000, MDS3000, TS9200D used in for Vermes, SSI, Mingseal, Axxon and many more.

Raw Materials: Tungsten Carbide
Corresponding to the applicable firing pin: CTF/TTF4-15, CTL15

Types J04-200
Comment Pointed type, jet type
Inner Diameter/Outer Diameter/Length 0.20x4x6.8

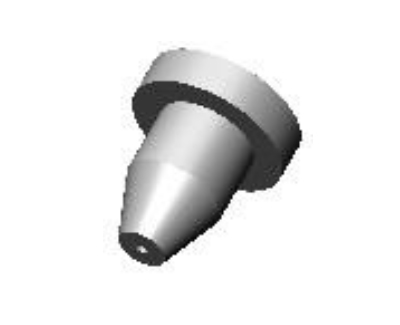

J09

Flat Long Jet Nozzle Insert for dispensing in Ink wells for example DV6200, MDS1000, MDS3000, TS9200D used in for Vermes, SSI, Mingseal, Axxon and many more.

Raw Materials: Tungsten Carbide
Corresponding to the applicable firing pin: CTF/TTF4-15, CTL15

Types J09- 250 J09- 300
Comment Cone, flat mouth Conical, flat mouth
Inner Diameter/Outer Diameter/Length 0.25x4x4.6 0.30x4x4.6

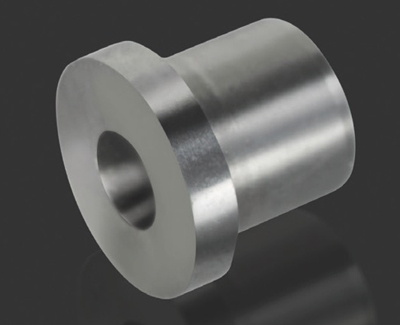

J10

Cylindrical Long Jet Nozzle Insert for dispensing in Ink wells for example DV6200, MDS1000, MDS3000, TS9200D used in for Vermes, SSI, Mingseal, Axxon and many more.

Raw Materials: Tungsten Carbide
Corresponding to the applicable firing pin: CTF/TTF7-15, CTL15

Types J10-400
Description Cylindrical
Material 0.40x4x6

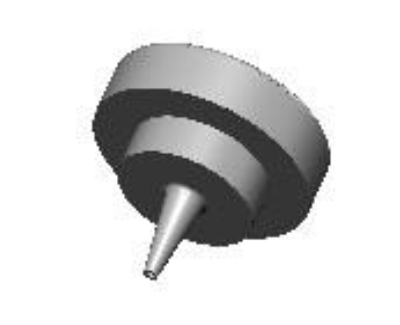

N28

Nozzle Insert for dispensing e.g. solder paste in deep cavities in Ink wells for example DV-6200 from Vermes, SSI and many more

Raw Materials: Tungsten Carbide

Corresponding to the applicable firing pin: CTF/TTF 4-15, CTL15

Types N28-300
Comment Pointed
Inner Diameter/Outer Diameter/Length 0.30x4x3.35
Enquire Now

Use < > to browse through the series of J02, i.e. J03, J04, J09, J10 and N28 etc. Nozzles

Tappet Striker

Tappets/ firing rods for the dispensing units. The superior materials of our tappets extend the lifetime

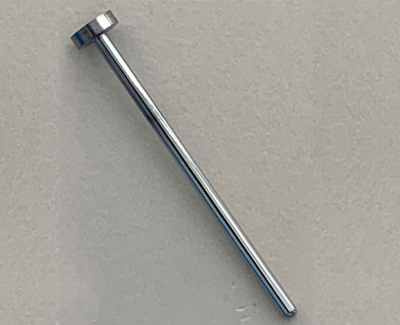

TTF

Tappets/ firing rods for the dispensing units. The superior materials of our tappets extend the lifetime

Raw materials: Tungsten Carbide

Description: Firing rod

Types TTF4 TTF5 TTF6 TTF7 TTF10 TTF15
Description firing rod – – firing rod firing rod firing rod
Material Tungsten Carbide – – Tungsten Carbide Tungsten Carbide Tungsten Carbide

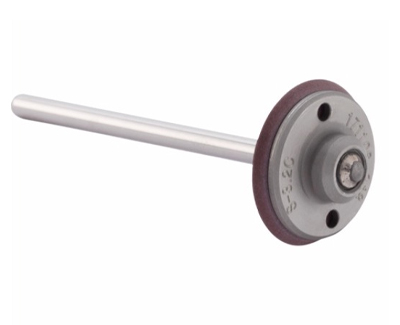

CTF

Ceramic Tappets/ firing rods for the dispensing units. The superior materials of our tappets extend the lifetime

Raw materials: Ceramic

Description: Firing rod

Types CTF4 CTF5 CTF6 CTF7 CTF10 CTF15
Description firing rod – – firing rod firing rod firing rod
Material Ceramic – – Ceramic Ceramic Ceramic
Enquire Now

Use < > to browse through the series of TTF i.e. CTF etc. Nozzles
