PRECISION PARTS DOWN TO +/-0.5 μm

PASS provides High Precision Parts and consumables with ever improving quality and accuracy. These parts are the basis for modern day productions. They allow smaller connections, finer holes, more accurate volumes of material dispensing, better communication with glass fibre cables and much more.

Through continuous cooperation and dedicated work, we develop the best possible solution for our customers’ projects. Most of our projects start with a technical challenge, which we approach through detailed evaluation, dedication to application, precision and incorruptibility concerning all quality issues. Our ambition is to find the optimal solution for your problem. Such a solution can only originate from a true cooperation customer and supplier.

Our experience and performance record speaks for itself, providing the fine difference, which in turn ensures our customers trust and using our ideas and expertise enable the customer to have a leading edge.

Our solutions utilise cutting edge technology and result in implementations that output high quality, high yield, application centred and process-safe production parts.

We pride ourselves in enabling our customers and developing long term products and relationships.

General Specification

MaterialsTungsten, diamond, sapphire, ceramic, steel

Surface< Ra 0.1

Holesdown to 0.025mm

Position Accuraciesdown to +/- 0.0003mm

Parts

Nozzles

High Quality Dispensing Products: Nozzle/Tappet/… for Dispensing

dispensing system examples Axxon, GK-Pretech, Mingseal, Nordson, SSI, Vermes, …

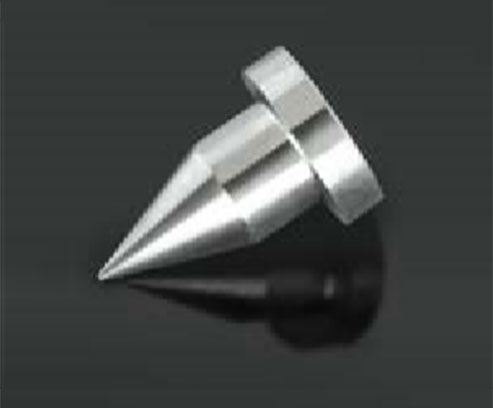

Jet Dispense

6mm nozzle

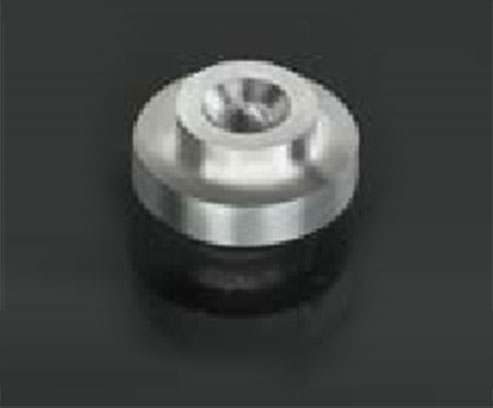

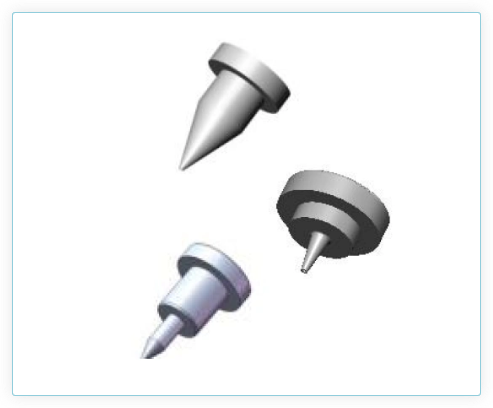

Dispensing Tip

4mm nozzle

Dispensing tip

1.75mm nozzle

Nozzel specifications achieved:

  • Inner diameter Ø0,025 – Ø2,500mm,
  • tolerance up to ± 0,001mm
  • High surface finishing
  • Long Ratios, e.g. 6mm Nozzle with 0.15mm channel

Nozzles/ Valves:

  • Solder dispensing
    • Dots =<150µm at a distance
    • =<70µm with contact
    • Multiple entry angles for high viscosity
    • Smallest volume (e.g. 1.0 nL
    • Micro soldering dispensing
  • Adhesive dispensing,
  • Acrylic dispensing
  • lenses, …

Sizes: 0.025mm … 1.0mm

Micro dispensing Valves

Nozzles/ Valves:

  • Fluidic dispensing nozzles,
  • medical,
    • Dots =<150µm at a distance
    • Ceramic food grade nozzles
    • Ceramic food grade tappets/ strikers
    • Enzyme dispensing
  • Glue dispensing
  • Dielectric dispensing
  • food, …

Sizes: 0.025mm … 1.0mm

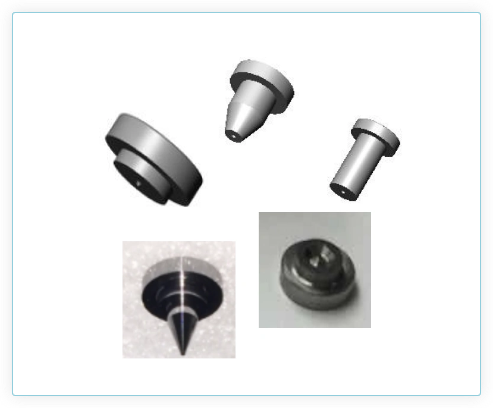

Piezo Jet Dispensing

Nozzles/ Valves:

  • Fluidic applications,
  • Precision nozzle
  • Needle dispenser
  • Ceramic nozzles
  • medical,
  • food, …

Sizes: 0.025mm … 1.0mm

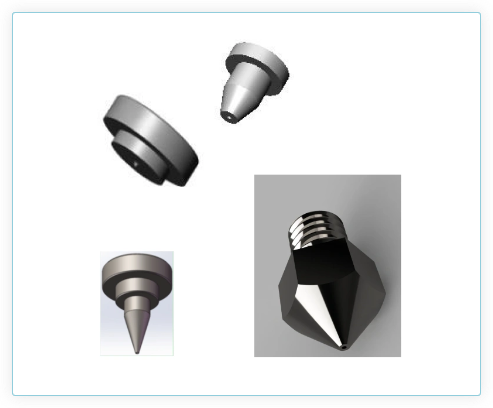

Tungston 3D printer nozzles

Dispensing Nozzles

  • Fluidic applications,
  • medical,
  • food, …

Sizes

  • 0.025mm … 1.0mm

Where it is used:
state of the art nozzle with high wear resistance and performance for 3D printer, such as: Ultimaker, Raise3d, Prusa, Makerbot, Robo, LulzBot, Flashforge and many more

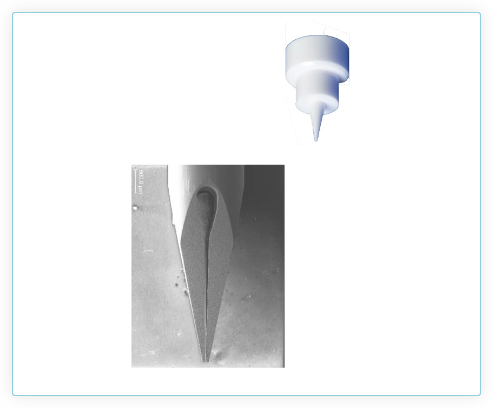

High Precision Nozzle

Dispensing Nozzles

  • Fluidic applications,
  • medical,
  • food, …

Accessories Dispensing

Tappets/ Strikers

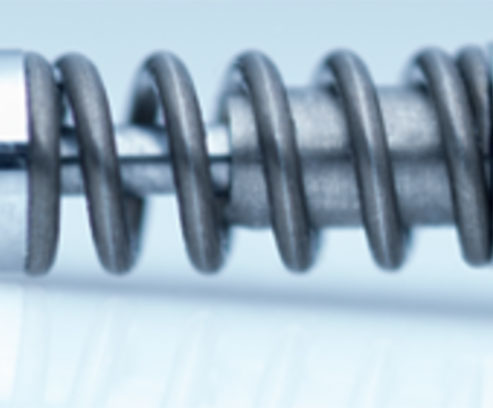

Springs

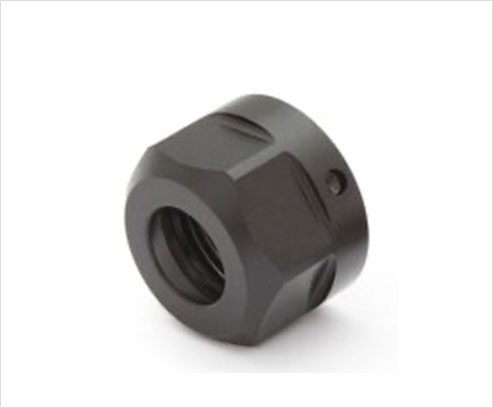

Mutters

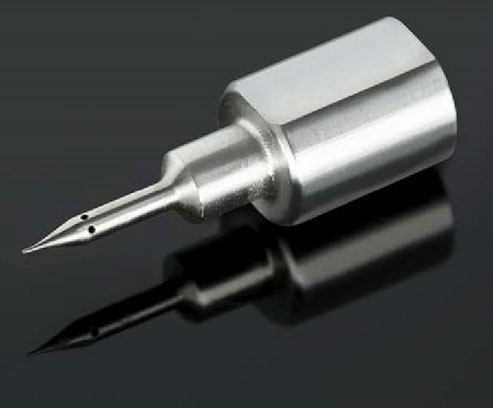

Special Dispensing Parts

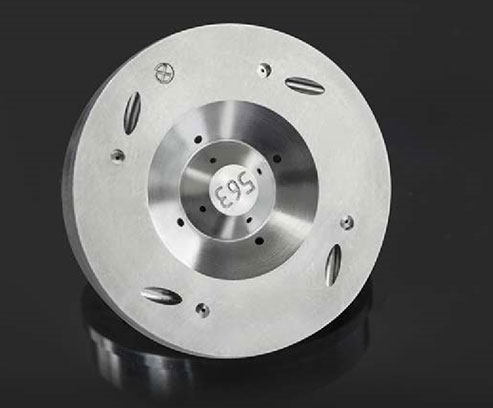

Fuel Injection

Special Dispensing tool, e.g. carbon, epoxy, mix

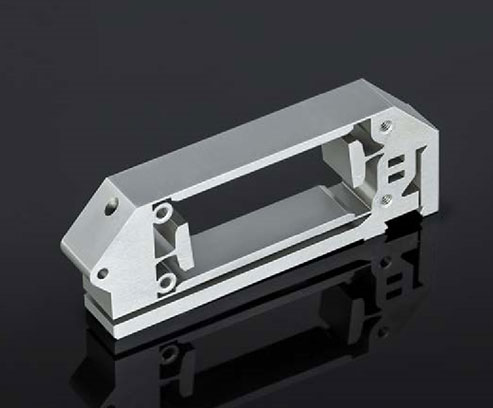

Special housings, e.g. for Piezo units

Ejector Pins

Ejector pins for die bonding

Normal diameter(D) 0.3mm-2.5mm

Point angle(W)10 ° – 140 °

Totla length(L)5mm-135mm

Point radius(R)from 0.010 mm

Platform diameter(d)from 0.02 mm

Finish quality(Rz)0.2-0.6

Coating DLC,TiN, TiAL

Quantities customer-specific

Material tungsten carbide, (finest grain, ultrafine grain) steel, ceramic

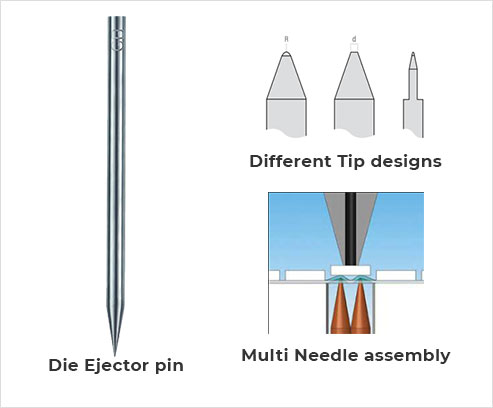

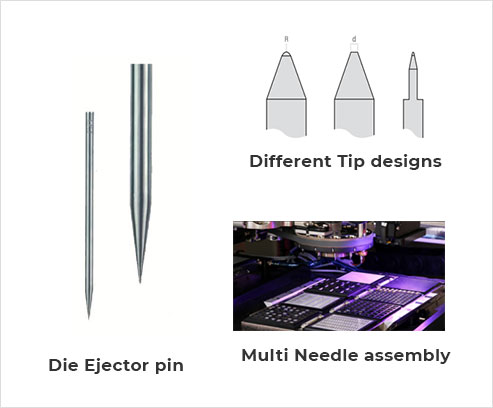

Die Ejector Needle/ Precision Ejector Needle

Normal diameter (D) 0.3mm-2.5mm

Point angle (W)10° – 140°

Totla length (L)5mm-135mm

Point radius (R)from 0.010 mm

Platform diameter (d)from 0.02 mm

Finish quality (Rz)0.2-0.6

Coating DLC,TiN, TiAL

Quantities customer-specific

Material tungsten carbide, (finest grain, ultrafine grain) steel, ceramic

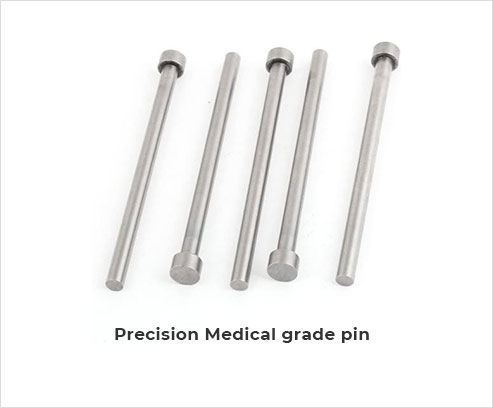

Medial Core Pin

Medical core pin

WIRE BONDING

Wire Bond Tools

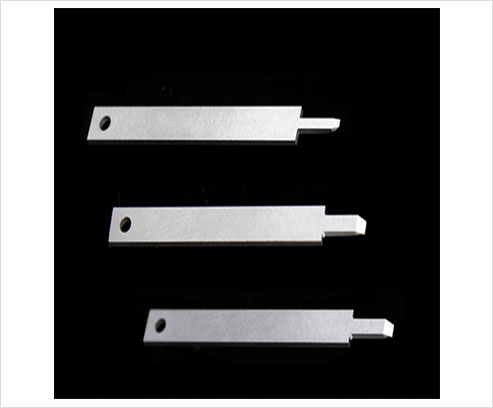

Heavy wire bond tools

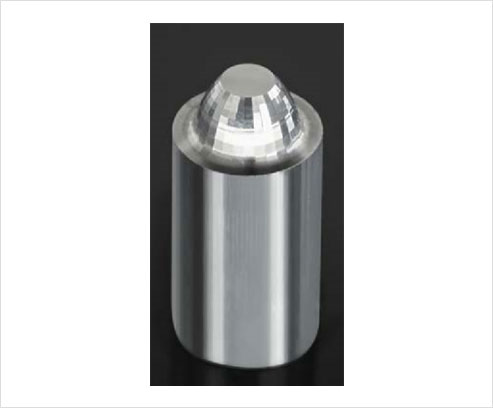

Wire Bond

Wire Bonding

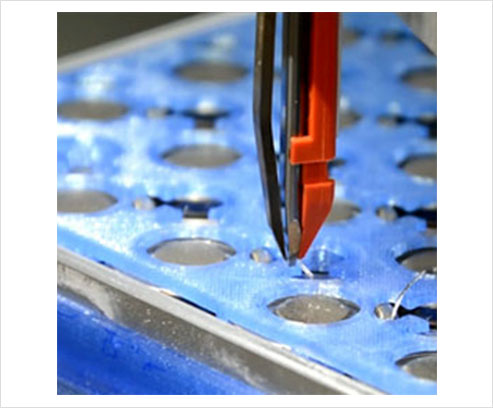

Wire Bond Knife

Heavy wire bond knive

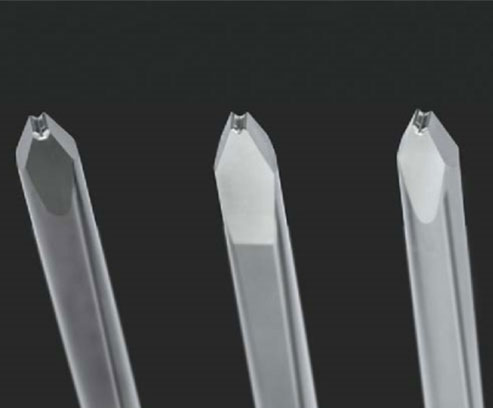

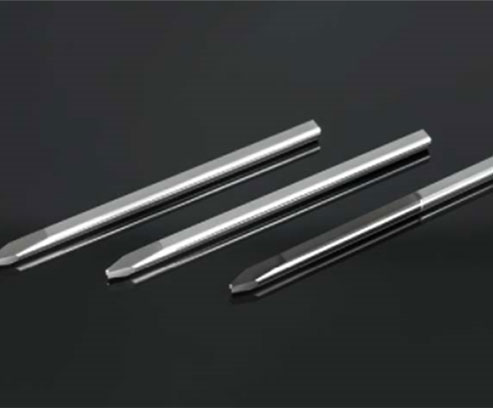

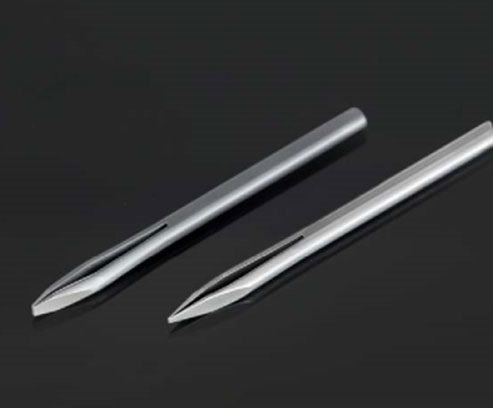

Heavy Bond Tools

Wedge Test Tool

Wedge Tool example

Wedge Tool example

Wire Guide for bonding

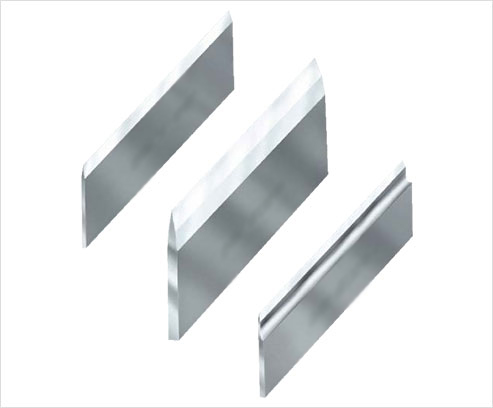

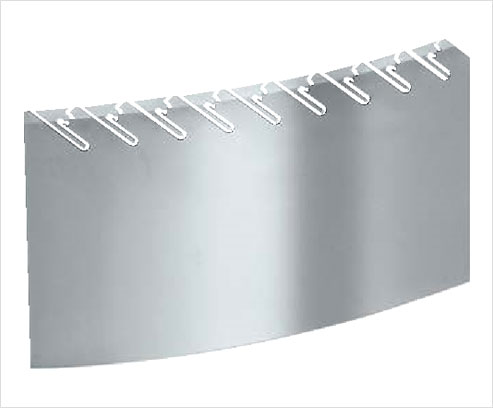

CUTTING TOOLS

WELDING/ WIRE GUID TOOLS

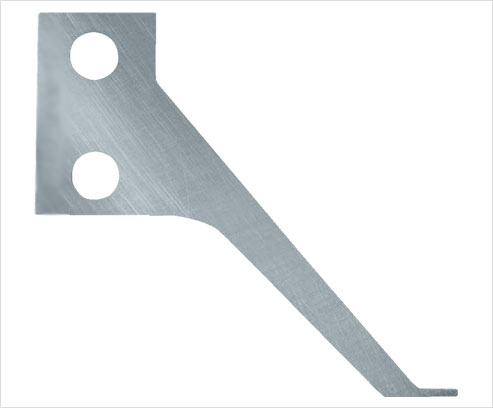

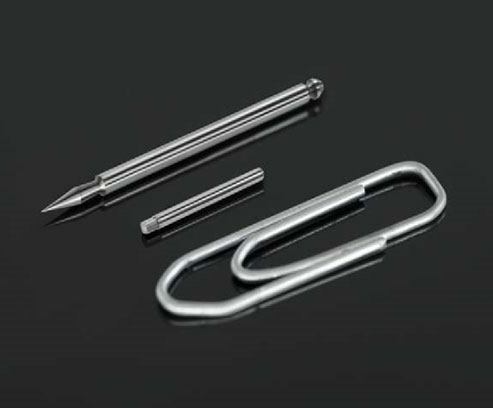

Spark Arm

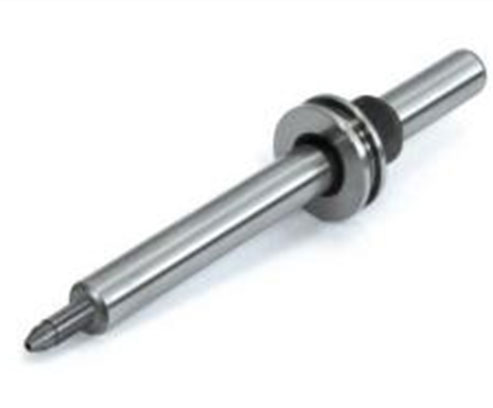

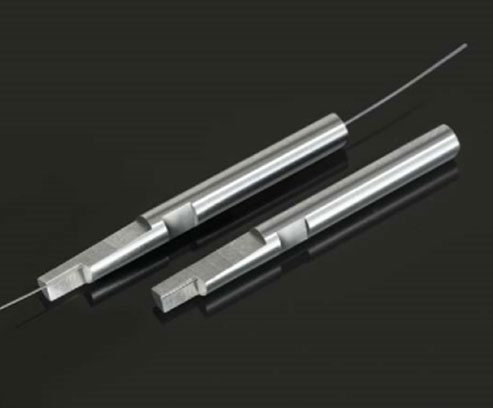

Wire Guides

Wire guide, tungsten carbide tip

Wire guide, carbide coated

Wire Guide

Wire Guide

Wire Guide

Wire Guide

Wire Guide for bonding

Wire guide, carbide

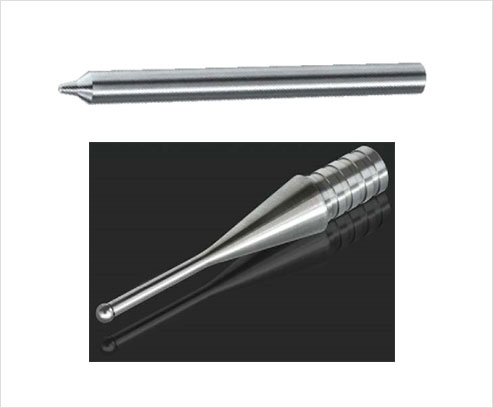

METROLOGY/ MEASUREMENT PINS

Radius Measurement Tip small (e.g. 1mm)

Radius Measurement tip large (e.g. 6mm) Ceramic, tungsten, coated

Measurement tool arm, surface roughness stylus

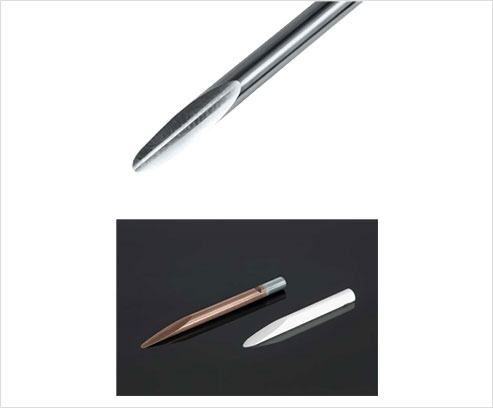

Measurement tool tip (ruby)

Measurement Steel Flat Tip small (e.g. 0.1mm)

Measurement Steel Ball Tip small (e.g. 0.1mm)

Measurement Steel Ball Tip small (e.g. 0.1mm)

Measurement tool tip

PUNCHING TOOLS

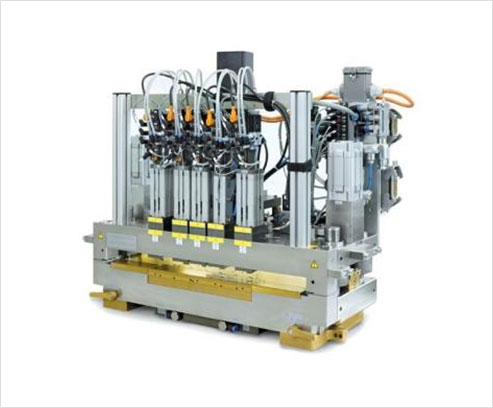

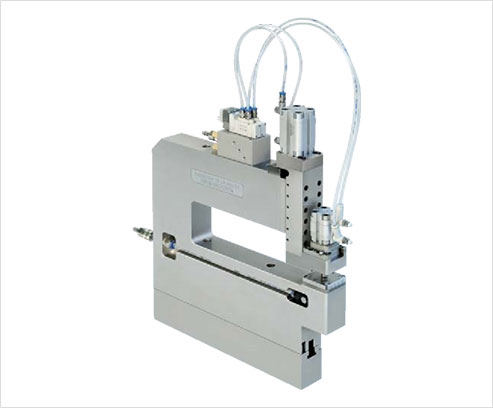

Punch tool with pneumatic actuator, multiple units

Punch tool with pneumatic actuator, multiple units, large punch

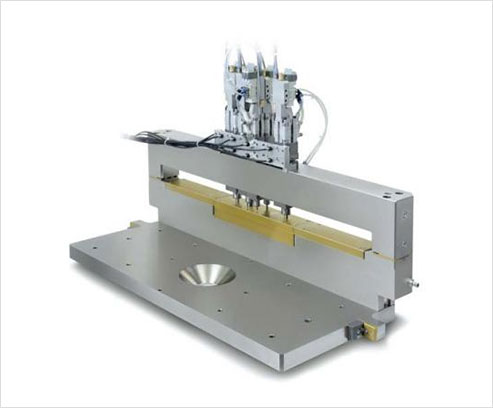

Punch tool with pneumatic actuator, single unit

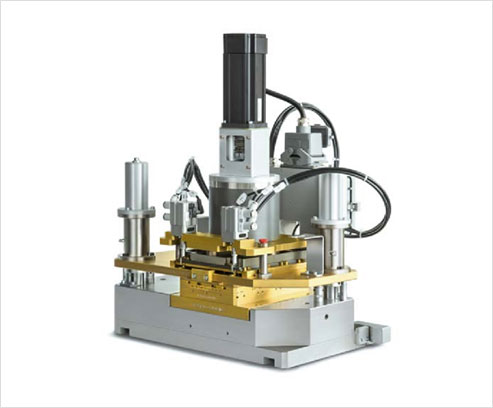

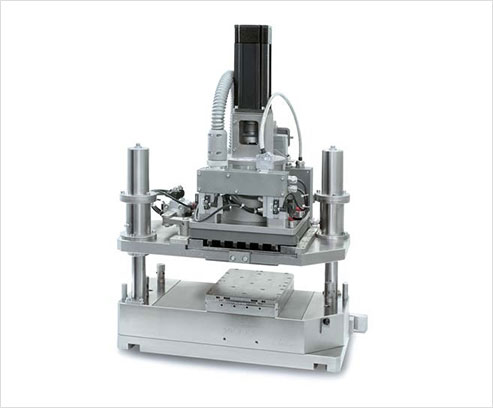

Punch tool with Electric actuator, multiple units

Punch tool with Electric actuator, large single punch

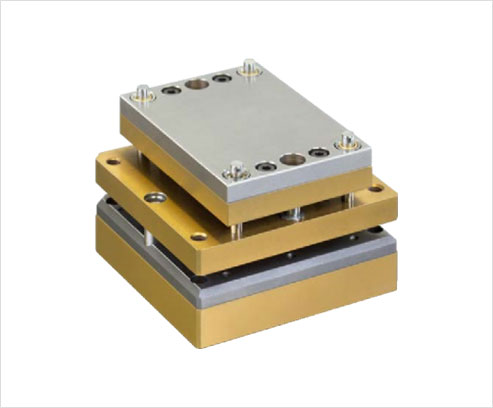

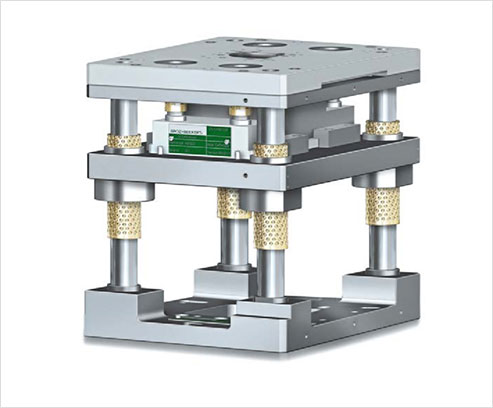

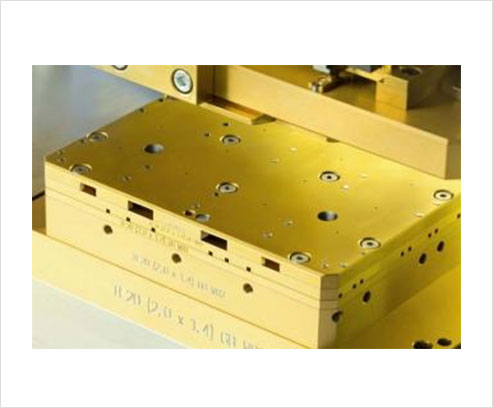

Module Punch tool

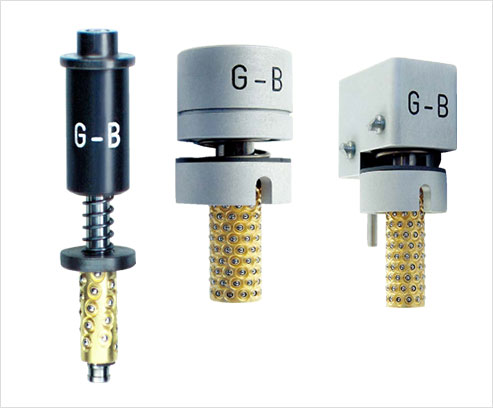

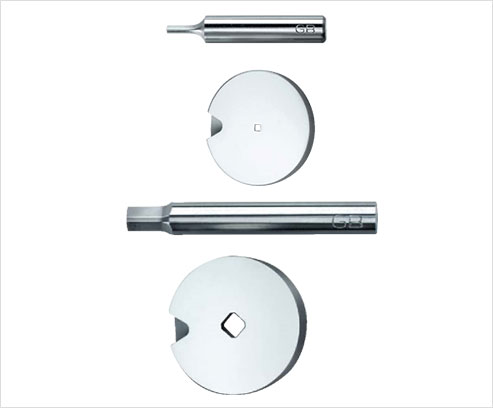

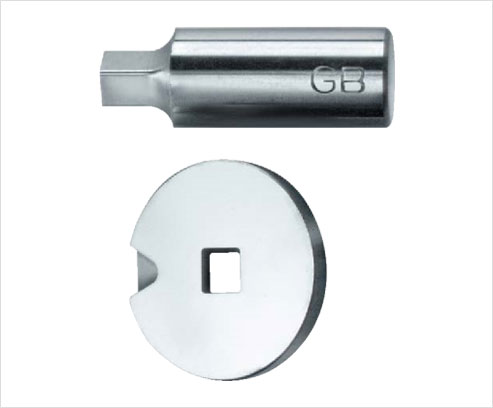

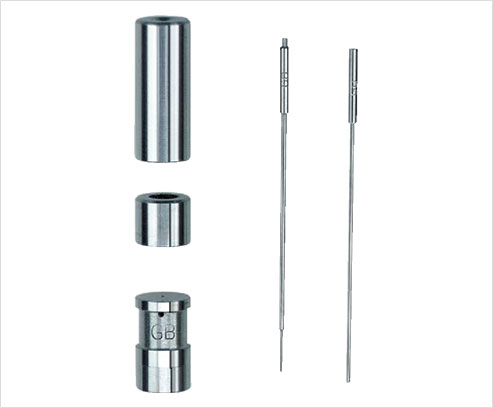

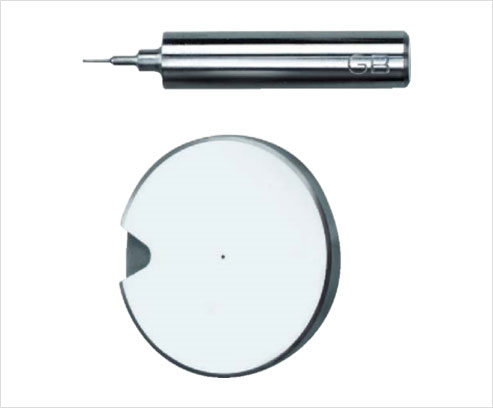

PINS AND DIES

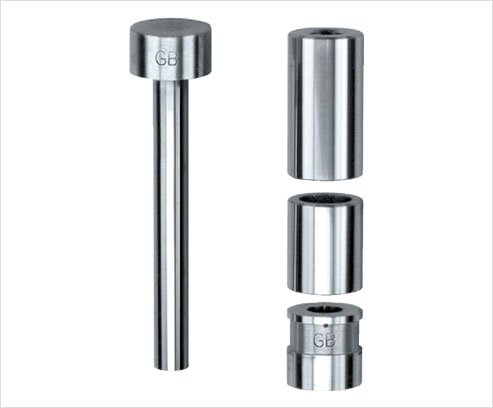

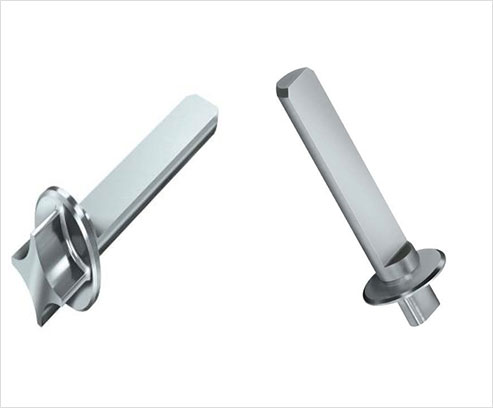

Special Punching Pins

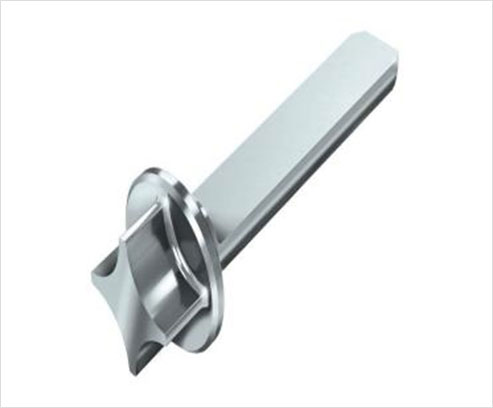

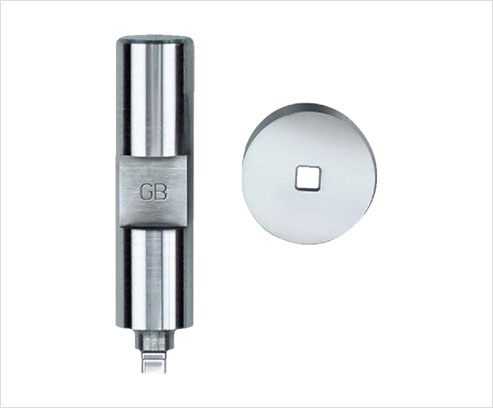

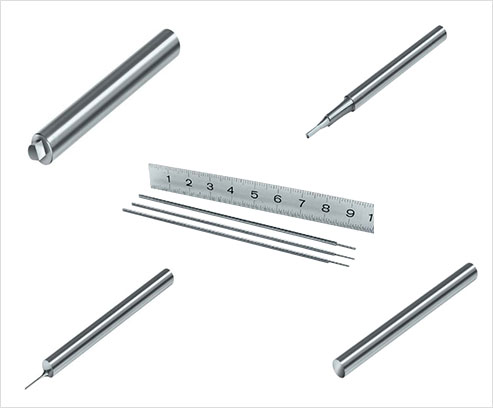

Precision Pin special shape

Precision pin set with logo

Ferrule pin

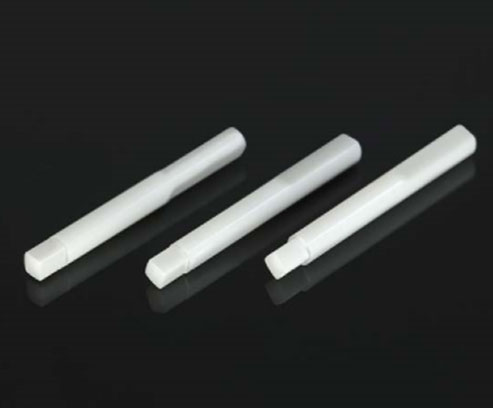

Ceramic special parts

PTC

UHT

HOWA

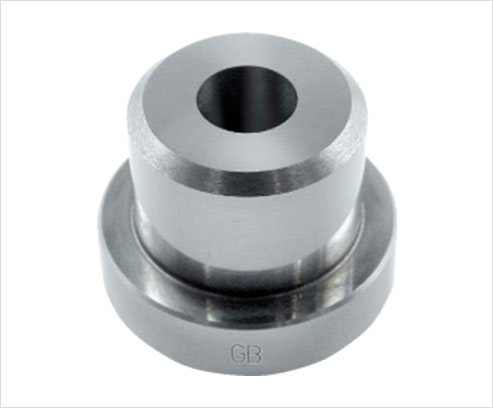

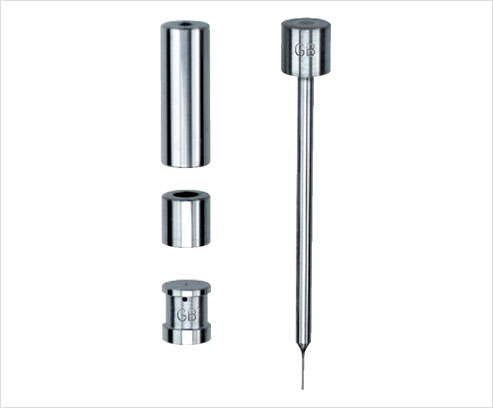

HOWA Pin, guide bushing, stripper, die

BACCINI

OTHERS

Special punch pin

Special shape punch

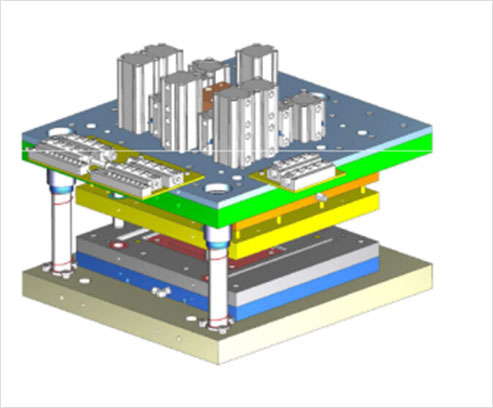

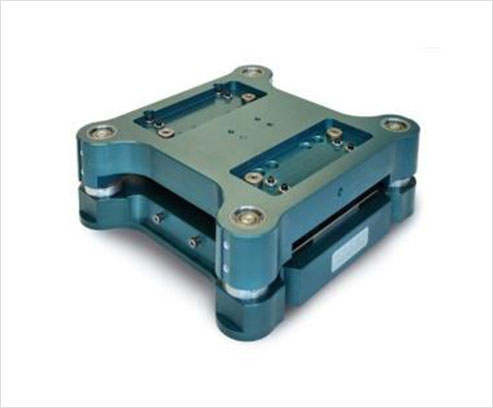

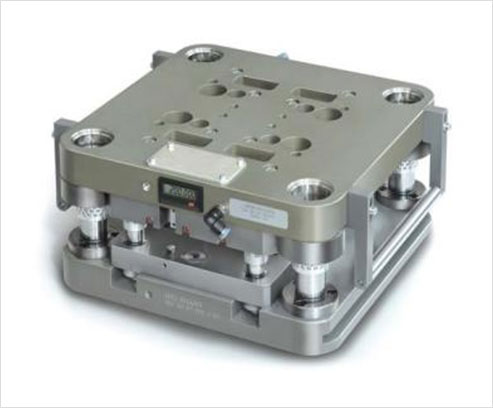

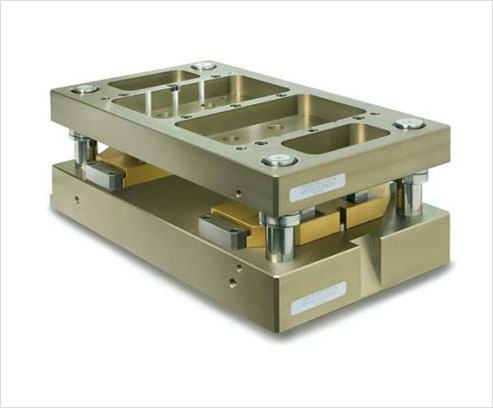

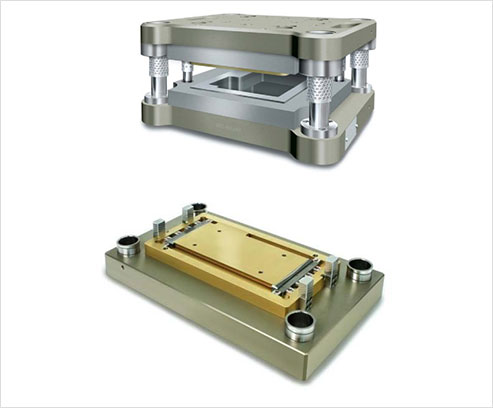

MOLDS/ BATTERY PUNCH TOOLS

Punch tool Battery (LG type/ Edge cut)

Punch tool Battery full cut

Punch tool Flag Cut

Coffee Pouch punch

Punch tool Battery edge cut with counter and replacement cutting inserts

TUNGSTEN DRILLS

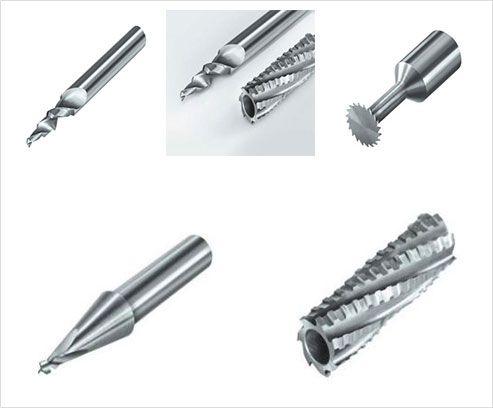

Special Drills

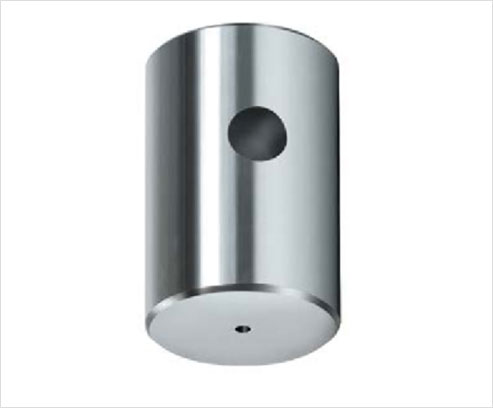

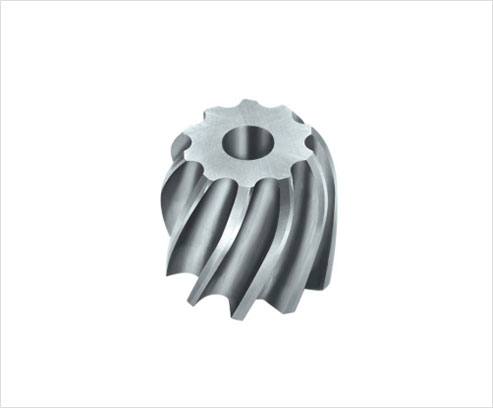

CUSTOMIZED TUNGSTEN PRODUCTS

MicroTools

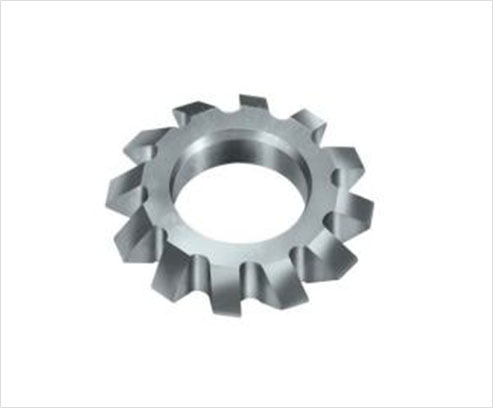

Excenter

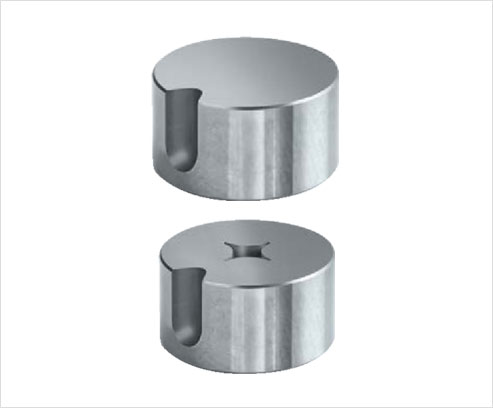

Special Die

Guide Die

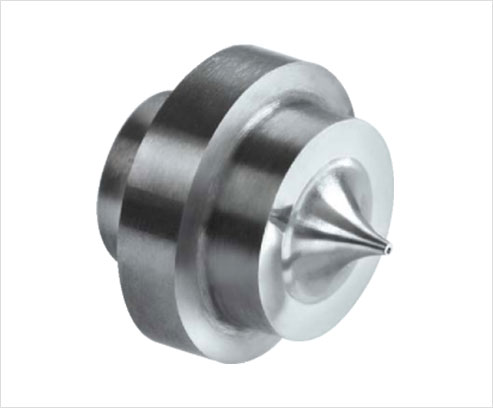

Special Nozzle

Special
