stacking machine
We at KMS Automation GmbH dedicate our work and our skills to the best possible solution for our customer’s projects. In the beginning, there is in most cases a technical challenge, which we try to solve according to our philoso- phy KMS Automation cares for absolute precision and incorruptibility for all quality issues. We have the ambition to find the optimal solution for your problem. Such a solution can never be single-sided, it can only originate from a true cooperation.That we in general succeed, speaks for the small difference, which is the reason for our customers to trust our ideas and expertise for the solution of their problems. For knowledge plus technology plus quality yield a totally proper and process-safe solution. In the end, there is often a long standing good partnership. KMS Automation GmbH maintains its own Technology Center for strategic and customer-specific research and development work.
General Specification
Material sizeup to 300x300mm
Thickness0.001 ~ 200mm
Typetacking, edge lamination, full lamination, mix
Accurancyup to +/- 0.005mm
Machines

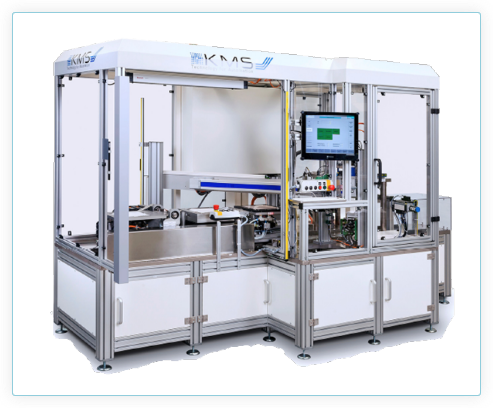

Manually Loaded
SM30
Technical data, stacking unit
- CCD alignment accuracy
+/- 5 um - Area press force with 8 lamination bars 18mm x 4,0mm
20-2000 N/cm2 - Parallelism of lamination bars to Sheet support
+/- 10um - Press temperature max.
250 °C

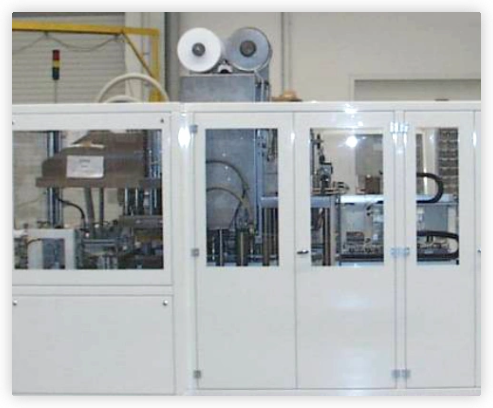

Automatically Loaded
PM40
Technical data, stacking unit
- CCD alignment accuracy
+/- 5 um - Area press force with 8 lamination bars 18mm x 4,0mm
20-2000 N/cm2 - Parallelism of lamination bars to Sheet support
+/- 10um - Press temperature max.
250 °C
